Pilot Operated Hydraulic Modular Valves
-
Product is not available
- Price upon request
-
-
Features :
○ This Valve is of the modular design improved from the pilot operated check valve used for preventing the actuator from self-operating,as well as for valve position holding.
○ Cracking pressure of check valve is 2 bar.
○ The valve is of the internal drain type.
-
Additional Information
○ The modular valves are available in size: 1/8″ (01)., 3/8″(03).,1/2″(04)., 3/4″(06)., all the mounting dimensions are based on ISO 4401 standard(Hydraulic fluid power four port directional control valves mounting surface).
○ The types are available in pressure control valves., flow control valves., directional control valves, which are high pressure, large capacity to meet recent tendency-high pressure, high flow hydraulic circuits.
○ Pressure up to (250 bar), flow up to 50lpm(size 01).,100lpm(size 03).,190lpm(size 04).,300lpm(size 06).

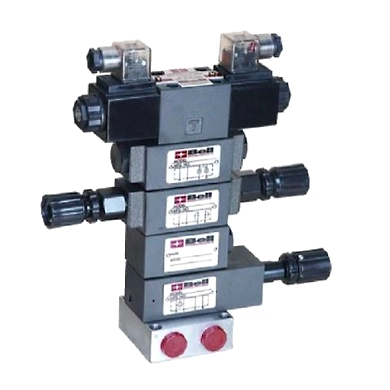

○ Modular valves have been developed and designed to integrate the hydraulic circuit with hydraulic equipment. Any type of hydraulic circuit can be set up without piping simply by stacking modular valves one over another.
○ The modular system has many features. For example, easy to install, easy alteration of hydraulic circuits reduces space, reduces cost, no vibration,no oil leakage, easy maintenance………………etc
○ M series relief modular valves(MB* -0*-*) throttle modular valves(MSP-0*-*).,throttle with check modular valves(MS*-0*-*),equipped with hand knob (handle)are standard.
-
